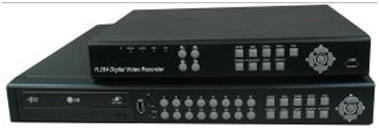

Model

LCR04HS

LCR08HS

LCR16HS

   Video Technology

H.264 Recording / Playback / Transmission (image size : 1K to 20K Byte/picture)

   Video Input

4 NTSC/PAL BNC

8 NTSC/PAL BNC

16 NTSC/PAL BNC

   Video Display

Quad, Full

Quad, Full and 9 split

Quad, Full and 16 split

   Video Output

1 BNC, VGA(Optional)

   Video Recording

720x240 (NTSC) / 720x288 (PAL)

   Video Resolution

720x480 (NTSC) / 720x576 (PAL)

   Recording Frame Rate

120/60/30 Field/Sec (NTSC) / 100/50/25 Field/Sec (PAL)

   Recording Mode

Manual record, Continuous, Schedule, Motion & Alarm

   Hard Disk Storage

1 x SATA HDD

2 x SATA HDD

   Playback Mode

By times, By event with FF: 2~32X, REW: 2~32X, STILL and JOG functions

   Motion detection

Internal & External Mode Clock, Settable Window/Level

   Alarm I/O

4  / 8 / 16 D-SUB Inputs / 1 D-SUB Output

   Audio I/O

4 x RCA / 8 x D-SUB / 16 x D-SUB Input / 1 x RCA Output / 8Kb/s per ch

   Dome Control

Pelco P, Pelco D, AD422, Fastrax 2, Panasonic

   Remote Control

By network or IR remote control (Option)

   Network Protocol

10/100 Base-T  TCP/IP, HTTP, DHCP, DDNS, Network Time Protocol

   Network Function

Web Viewer, Multi-user accessing, audio support, 3G PDA support

   User Interface

GUI / USB mouse (option) / CMS

   Archiving Back-up

1 x USB 2.0 port for data backup , Internal / External DVD RW (option for 8ch and 16ch)

   F/W upgrade

Firmware Upgrade via USB

   Power Source

AC 100 ~ 240V, 50-60Hz, 5.0 A, 60W Adaptor

   Weight

Net : 2Kgs   Gross : 3Kgs

   Dimension

32x4.5x23 / 40x12.5x33cm

Non-Packing : 43X5x37cm  ;  Packing : 44x14.5x52cm
