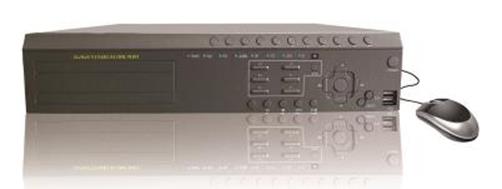

Luminary 16 CH HD NVR (LU-N1680P) |
|
Key Features: ● Support HDMI up to 1920x1080P HD output. ● Built-in DDNS domain name service no port forwarding configuration. ● Free CMS compatible with Apple Mac OSX. ● Free mobile surveillance software supports 5 major mobile OS. ● Connect all cameras via one cable only. Easy to use and install. ● Mobile phone application supports 16 screen partition, playback, multi-site surveillance, fully PTZ control, snapshot and motion recording. |
|
T: +886-2-2721-3037 F: +886-2-2731-6831 E: service@luminarylnh.com |
|
Back> |
|
MODEL |
LU-N1680P |
|
Video Format |
NTSC/PAL |
|
Resolution |
1920 x 1080 |
|
Recording |
1080P / 16CH |
|
NTSC Recording |
270FPS/16CH max 30FPS/CH |
|
PAL Recording |
400FPS/16CH max 25FPS/CH |
|
Playback |
1080P / 1CH |
|
HDMI Output |
1920x1080P |
|
YPbPr Output |
1920x1080P |
|
VGA Output |
1280x1024 / 800x600 |
|
BNC Output |
NTSC:720x480 / PAL:720x576 |
|
Recording Format |
1080P / CIF |
|
Protocol |
DHCP,DDNS,UPnP,SMTP,FAB |
|
IE |
Windows |
|
CMS |
Windows / Mac |
|
Motion Recording |
YES |
|
Record Mode |
All-time, Alarm, Motion, Schedule |
|
Mobile System |
iPhone, Android, Windows mobile, Symbian, Blackberry |
|
Audio input |
A microphone inputs for 2-way audio communication with IPCAM & CMS |
|
Audio output |
A speaker outputs for 2-way audio communication with IPCAM & CMS |
|
Alarm input |
4CH |
|
Alarm output |
1CH |
|
Hard disk |
7x3000G |
|
Mouse |
YES |
|
Remote Controller |
YES |
|
PTZ control |
RS485 |
|
Network port |
1000M RJ45 |
|
DVD-RW |
Optional |
|
USB port |
2+1USB 2.0 |
|
Power |
ATX 110-220V / 250W |
|
Operation temperature |
-10℃~50℃ |
|
Size（L）×（W）×（H）mm |
415× 365 × 100(2U) |
|
Weight |
5.25 kg |
