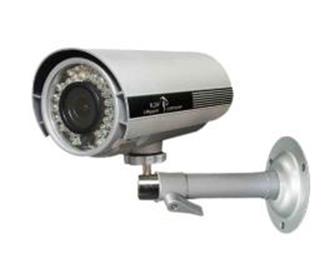

H.264 IP camera 2 Mega Pixel OUTDOOR IR CAMERA Lu-H796R |
|
Key Features: ● 2 Mega pixel(1600x1200) progressive scan CMOS sensor ● H.264/MPEG-4/JPEG triple streams simultaneously ● Waterproof IP66 with long IR distance ● External zoom / focus adjustment ● Up to 32G SD card recording for alarm trigger & network outage ● Optical IR cut removal (ICR) built in ● 2-way audio ● Mobile view support ● WiFi / PoE support |
|
T: +886-2-2721-3037 F: +886-2-2731-6831 E: service@luminarylnh.com |
|
Back> |
|
Server |
Network Compression |
Triple streams: H.264/MPEG-4/JPEG |
|
Pixel (H x V) |
D1, 4CIF, CIF, QCIF |
|
|
Traffic Control |
32/48/64/96/128/196/256/320/384/448/512/576/640/704/768Kbps 1/1.5/2/2.5/3/3.5/4/6/8Mbps |
|
|
Max. Frame Rate |
Max. 30FPS (1280x720,800x592,640x480,320x240,176x144), 25FPS (1280x960),22FPS(1280X1024),15FPS(1600X1200) |
|
|
Safety |
User-ID and password |
|
|
Protocol |
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, PPPoE, DNS, DDNS, NTP, UPnP, UPnP forwarding, RTSP |
|
|
Number of User |
Max. 10 connections for signal video |
|
|
Storage Capacity |
SD card (inquire before ordering) |
|
|
Alerting |
SMTP, FTP, HTTP, SD card |
|
|
Pre / Post Alarm |
Pre (0,1,2,3,4,5), post (0,1,2,3,4,5,10) seconds |
|
|
Release for alarm |
Motion detection, I/O or schedule |
|
|
Network Camera |
Image Pick-up Device |
1/3" Progressive Scan CMOS sensor, approximately 2 Mega Pixel |
|
BLC |
Auto (ON/OFF) |
|
|
Electronic Shutter |
1/50 (1/60) ~ 1/100,000 second |
|
|
Video Output |
BNC, 1Vp-p, 75 Ohms |
|
|
Min Illumination |
0.1 - 100.000 Lux, in night color mode 0.01 - 100.000 Lux |
|
|
Lens |
Auto iris lens 3.6-16mm |
|
|
Optical |
IR cut filter |
|
|
IR LED / Range |
35 x IR LED |
|
|
Audio |
Audio Communication |
2 way half duplex |
|
Audio Compression |
ADPCM 32Kbps |
|
|
Frequency |
300 Hz - 3.4KHz |
|
|
Audio In |
3.5mm, line in for microphone |
|
|
Audio Out |
3.5mm, line out for external speaker |
|
|
Terminal |
Network Interface |
Ethernet (10Base-T/100Base-Tx), WiFi for option |
|
Video Interface |
BNC, video composit (NTSC/PAL) |
|
|
External Port |
Alarm-in x1 / relay-out x1 |
|
|
SD Card |
SD memory card with the 32GB, 16GB, 8GB, 4GB~64MB (inquire before ordering) |
|
|
General |
Operation Voltage |
PoE: 48V, IEEE 802.3af for option (max. 7W) LAN: 12V DC (max. 6W), WiFi: 12V DC (max. 7W) |
|
Dimen./Weight |
83(ɸ )x180(L)mm / @1,500g / 10pcs per carton |
|
|
Operation Temp |
-10 C ~ +45C relative moisture 20%-90% |
|
|
Waterproof |
IP66 |
