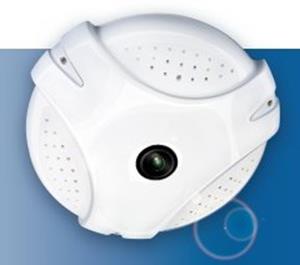

2 Megapixel Fish-Eye Panorama Network Dome Camera (LU-PD636E)

Key Features:

 H.264 / MJPEG codec

 Featured with 360° Fish-Eye Lens

 Support ceiling mount, wall mount and table view applications

 Advanced e-PTZ

 Day & Night function with Mechanical ICR

 Two-way audio support

 Micro SD card for local storage

 Power over Ethernet (optional)

T: +886-2-2721-3037

F: +886-2-2731-6831

E: service@luminarylnh.com

Back>

Video Compression

H.264 / Motion JPEG

Video Resolution

1600x1200,800x600,640x480

Image Layout

Source image, board view, double board view, triple view, quad view

Bit Rate

1M ~ 6Mbps (CBR/VBR configurable)

Frame Rate

15FPS @ 1600x1200

Image Device

Color CMOS Sensor

Lens Type

Fish-Eye Lens, FOV=185° (D/H/V),F=2.0mm, f=1.25mm

Day/Night function

Mechanical IR cut filter

Video Control

Controllable frame/bit-rate(bandwidth), VBR/CBR control, Backlight compensation

Image Adjustment

Brightness, Saturation, Sharpness, Exposure , White balance control

Event System

Trigger

motion detecton

Action

file upload via FTP, e-mail and Micro SD card Notification via e-mail

Local storage

Micro SD card (not included) , support SDHC, schedule recording, full over-write

Network Interface

10BASE-T/100 BASE-TX

PoE

IEEE802.03 af (PD636E only)

System Requirement

CPU: Intel Pentium D Processor
RAM: 1GB
Graphic Card: 256MB (with H.264 decoder)

Protocols

HTTP,HTTPS, TCP/ IP,IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP,RTSP, RTP, Bonjour, UPnP

Audio Capability

1x line in, 1x line out, built-in microphone

Audio Compression

u-Law PCM 8Khz

Power Supply

AC/DC switching power adapter, input: AC100 ~240V, output: DC 12V/2A

Security

Password Protection , Https encryption , User accesslog

Power Consumption

5W

Operation Temperature

0°C ~ 50°C

Operation Humidity

20% ~ 80% RH

Browser

IE 7.0 above

Certification Report

CE/FCC, ROHS,WEEE

Dimension ( http://www.pixord.com/product/images/dimension.jpgx H)

180 x 55

Net Weight

380g

I/O Connectors

1x RJ45 10BASE-T/100 BASE-TX
1x DC jack
1x Audio line out/1x audio line in
1x Micro SD slot
1x Default setting button
1x I/O Terminal connector; 4x DI/1x DO

Package Contents

1 x CD (User's manual and software)
1x Quick Installation Guide
1xInstallation Bracket
1xWarranty Card
1xPower Adapter(PoE model not included)
1xScrew Pack
